An Air Track Drill with Automatic Rod Changer, ideal for Quarries, Mining and Civil Construction, where durability and reliability are required.
Advantages:
- Rod changer increasing production
- Low maintenance cost
- Ideal for development
- Operational Simplicity and Mobility
- Low Investment Cost
Top Hammer Air Track Drill for Construction, Mining and Quarrying
Technical Data | |
|---|---|
Air Consumption: 750 PCM | |
Work Pressure: 100 PSI / 7 bar | |
Drill models available: Mw-126ls/131ls/140ls | |
Cleaning: Air or Water |
Available Items | |||
|---|---|---|---|
Drifter hourmeter (drill)
| OPTIONAL | ||
Dust Collector
| OPTIONAL | ||
Water kit with external tank (available for use on LS hammers). This Kit enables the injection of water to clean the mines, reducing the emission of dust in the drilling environment.
| OPTIONAL | ||
Button Bit Grinder
| OPTIONAL | ||
Pneumatic Emery
| OPTIONAL | ||
Surface Drifter MW:
Drifters (Top Hammers) | |||
|---|---|---|---|
Model | MW 140LS | MW 126LS | MW 131LS |
Image |  |  | |
Air Consumption | 750 PCM
| 700 PCM
| 750 PCM
|
Working Pressure | 7 bar – 100 psi | 7 bar – 100 psi | 7 bar – 100 psi |
Impact Power | 10 kW | 10 kW | 11,1 kW |
Impact Frequency | 2350 imp/min | 2600 imp/min | 2350 imp/min |
Rotation | Independent | Independent | Independent |
Hole Size | 2” – 3.1/2” | 2” – 3.1/2” | 2” – 3.1/2” |
Weight | 185kg | 190kg | 190kg |

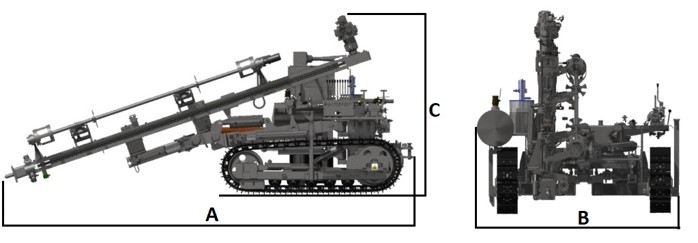

Transport Dimensions | |
|---|---|
Weight | 5.000 kg |
Width with dust collector
| 2.800 mm |
Width with water tank | 2.500 mm |
Length | 5.800 mm |
Height | 2.600 mm |
